Documentation Grand Piano by Gregor Deiss, 1815
Exact surveying establishes a reference for reconstruktion of the instrument and therefore requires utmost exactitude and precision.
A first step is visual inspection for planning the proceedings of survey. For the Deiß grand a combination of procedures is used:
tactile measuring using a Faro 7 links 3D scan arm:
- with straight tip for locating tuning, bar and end pins
- with angled tip for components not accessible otherwise
- with ball tip for measuring the case
x-ray tomography
- for 3D survey of resonance elements (soundboard, ribs, struts, joints)
boriscopic
- survey (position and basic measuring of struts, traces of tools and work processes, materials)
laserscan of the karyatids
self made measuring rod
for a preliminary survey of the internal resonance chamber

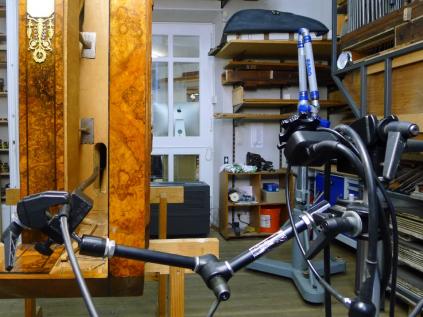

Faro Scan Arm
Measuring arrangement for tactile surveying of upper surfaces, achieving a tolerance of 0,08 mm. Of particular importance is the exact measuring of bridge pin positions to establish the scale lengths in relation to the soundboard.

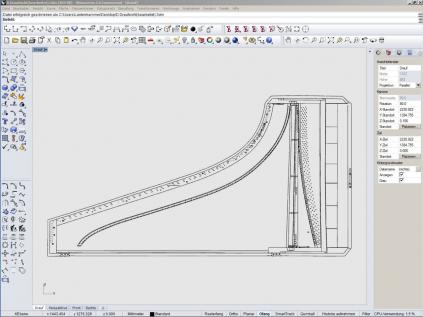

The result is a 1:1 plan in Rhinozerus CAD. This plan is fundament for replication, can be scaled for corrections and can be printed.

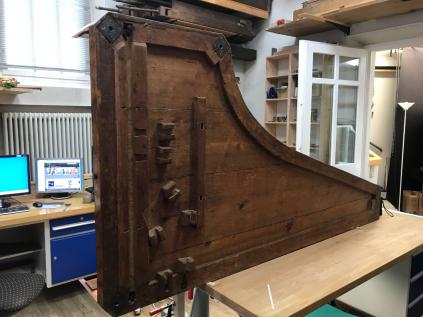

base board, levers removed

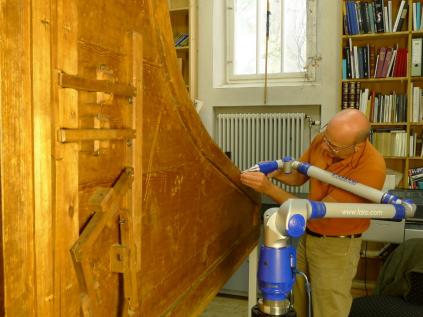

measuring baseboard, levers included

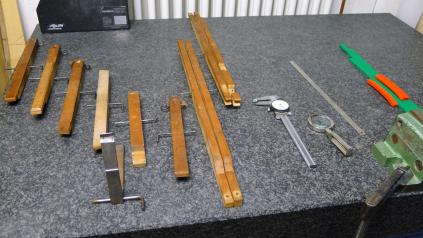

levers prepared for measuring

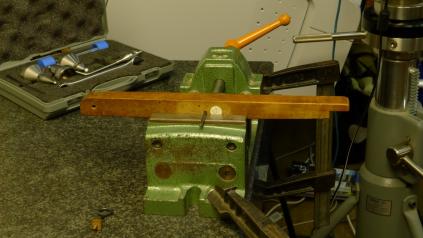

measuring setting

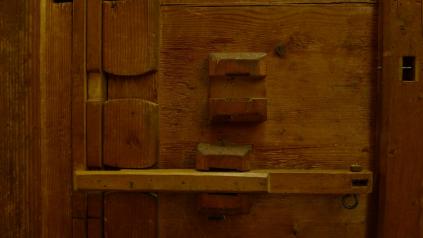

detail. lever bearing
Boriscope
investigating the resonance chamber using extant apertures

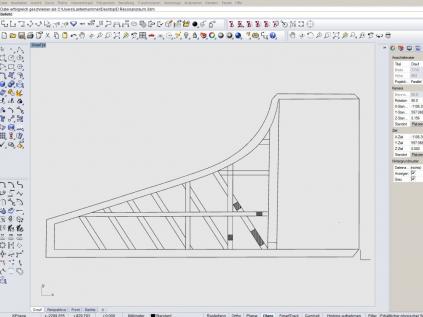

preliminary reconstruction of the inside struts

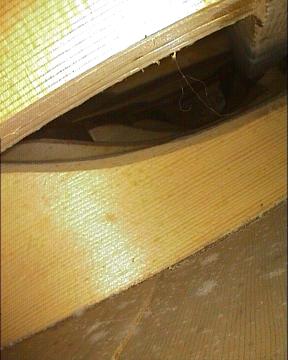

main struts

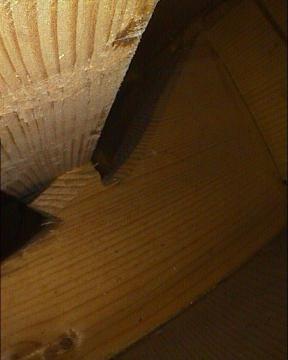

seat of upper struts
measuring
Faro-Laserscan

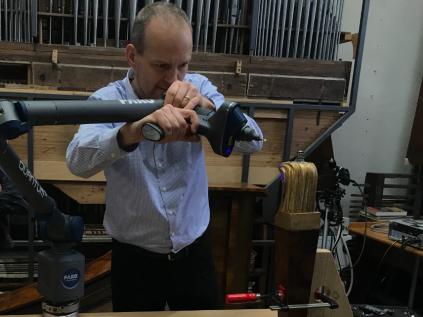

laserscanning the karyatids, necessary for all four of them since they are different from each other

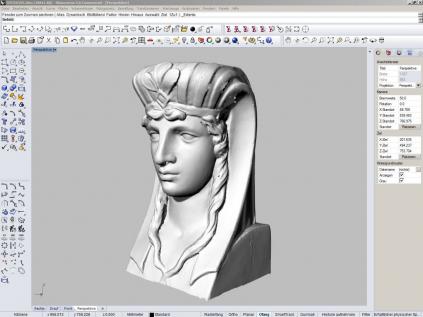

a scan in Rhino CAD. For other purposes the karyatids could be made using a 3D printer or a CNC milling machine.
